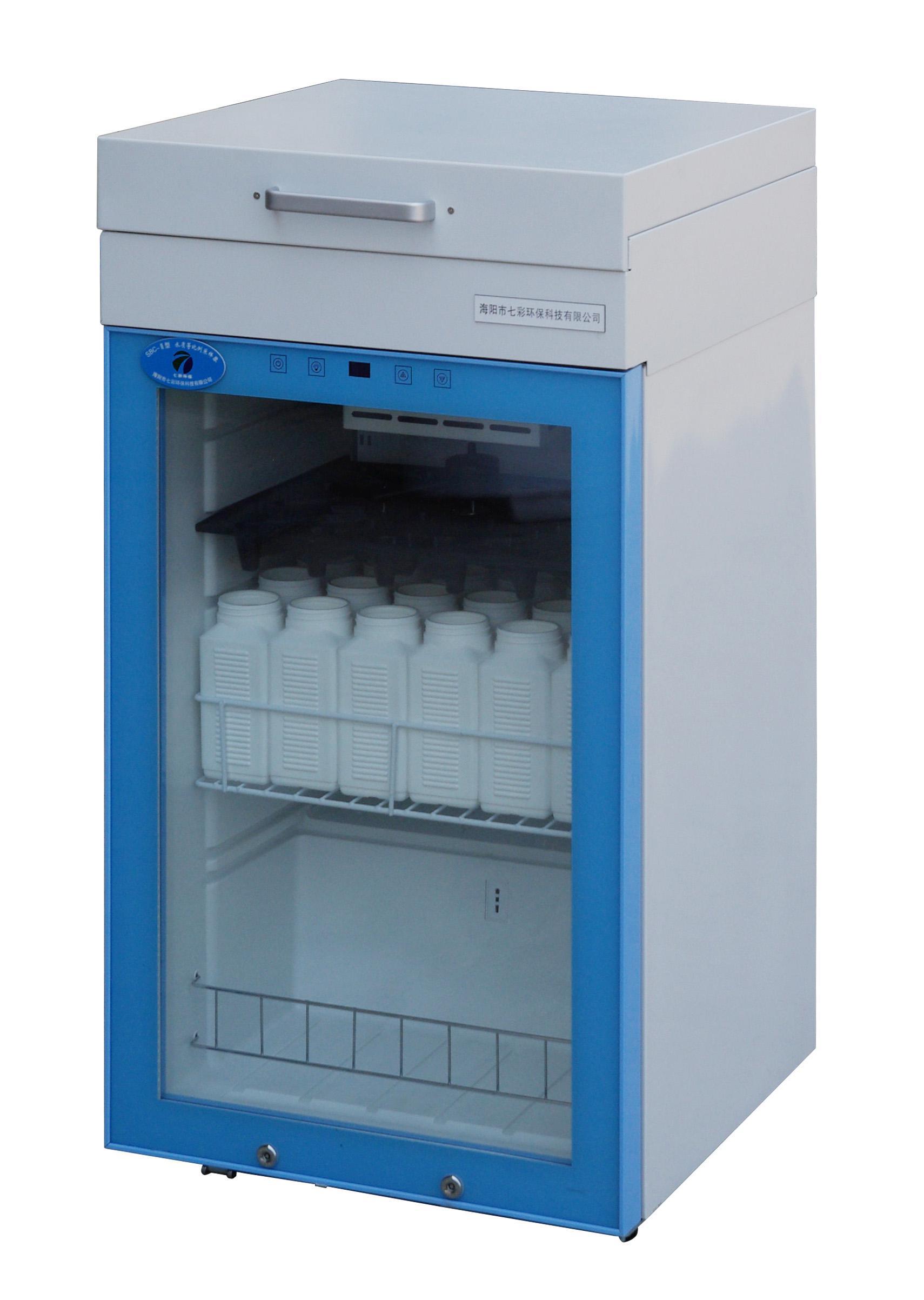

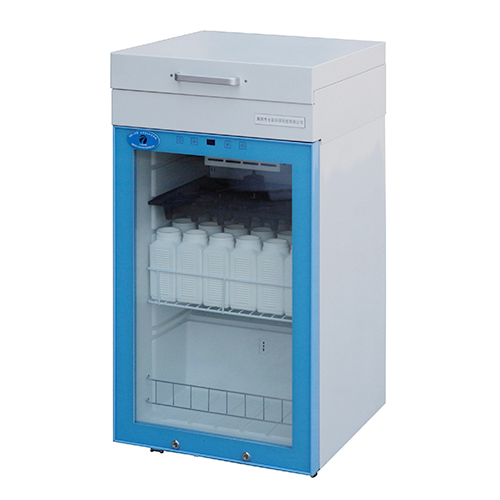

SP8000 Water Automatic Sampler is designed in accordance with the requirement of national environmental monitoring technical specification with the consideration of environmental pollution situation in China & the needs of all levels of environmental monitoring department. It’s an intelligent sampler which can complete the sampling of waste water through different methods like time, volume ratio and constant flow ratio. The sampler meets the requirement of national wastewater discharge standard and it is an essential instrument to obtain the daily average concentration of pollutant discharge.
Features
Large screen display in Chinese language; user-friendly interface; easy to operate.
Hybrid stepping moto & subdivision driver; stable running & very low noise.
Automatic emptying function & tube pre-rinsing function, meeting all kinds of water quality condition.
Controllable Bottling device for automatic sample bottling.
Telecommunication function, which can control the start of the sampler and can inquire on-site status by remote SMS(communication module option required).
Plenty of data polling function & big size of data storage function, easy for user to do statistical analysis.
Printing and communicating function allows to print on-site data timely(printer option required).
Entrance guard function which has two-level password locking to prevent unauthorized operation.
Liquid is detected by level sensor to improve sampling precision.
Digital thermostatic control system; heating & cooling function to ensure the sample storage temperature.
Specifications
| Sampling procedure | Programmable; one-button start |
| Sampling record | 10000 sampling records |
| Alarm information | At least 2000 messages include system power ON/OFF, parametric modification, equipment failure, etc. |
| Flow querying | Flow record in every hour, day, month & year for two years, meeting users’ need. |
| Start of Sampling procedure | External signal-trigging start, over-limit sampling start, preset time start, instant start, over liquid-level start |
| Communication signal interface | Two RS232 signal, RS485 signal, 4~20mA signal, switching value signal. |
| Sampling speed | Programmable from 100 to 1200ml/m |
| Sampling volume | Programmable from 1 to 9999 ml |
| Sampling interval | Programmable from 1 to 9999 minutes |
| Sampling volume error | ±5% |
| Proportional sampling error | ±10% |
| Parallel sampling tube length | 0~50 meter |
| Vertical sampling suction | ≤8 meter |
| Bottle number | 1~24 bottles, 1000 mL each |
| Sample storage temperature | Room temperature |
| Operating temperature | -20~70°C |
| Power | 220VAC, 50Hz/ 60Hz |
| Protection | IP56 |
| Certification | CPA certification, CEP certification |
